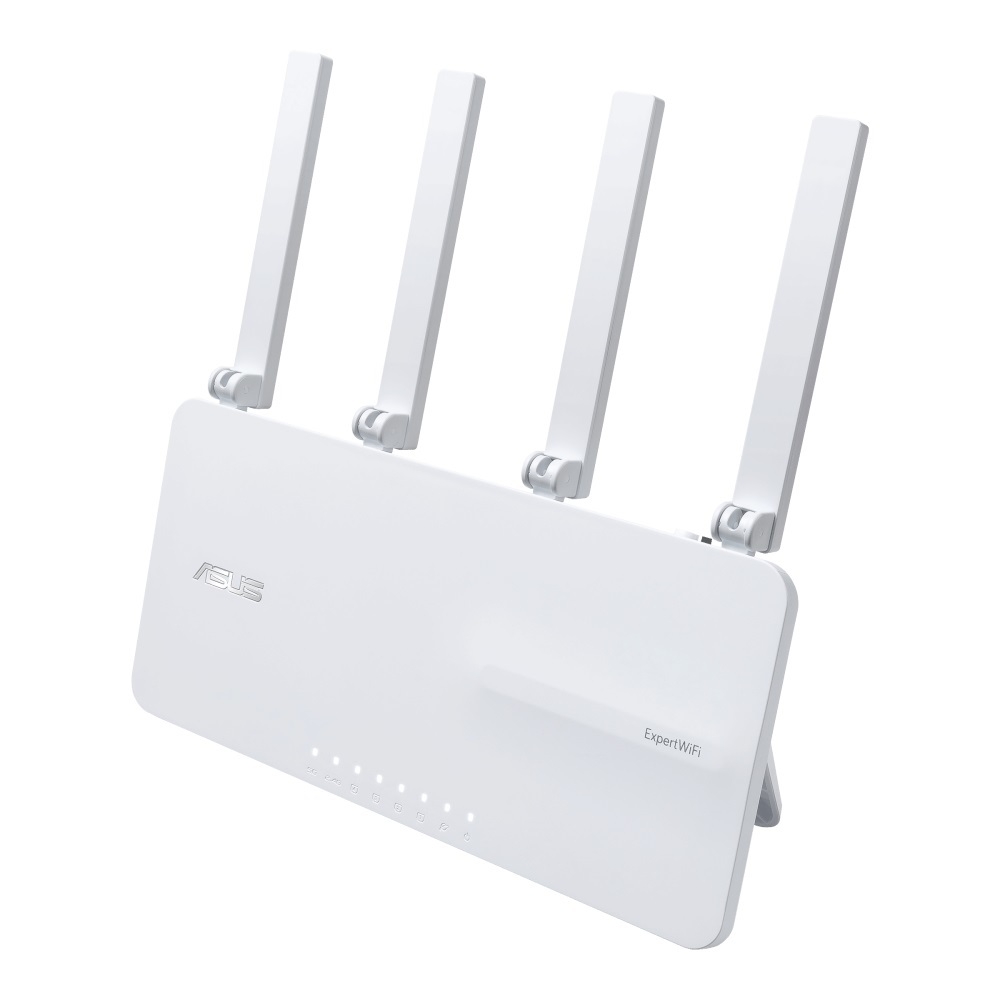

Model Name: EBR63
Network Standard: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment: AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate: 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna: 4 External Antenna
Transmit / Receive: 2.4GHz 2x2
5GHz 2x2
Processor: 1.7GHz quad-core processor
Memory: 256MB FLASH512MB RAM
Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth
Operating Frequency: 2.4 GHz
5 GHz
Operating Mode: Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0
Buttons: WPS Button, Reset Button, Power Switch
LED Indicator: POWER, WAN, LAN, 5G, 2.4G
Power Supply: AC Input : 110V~240V(50~60Hz)DC Output : 12V with max. 2A current
Mounting: Wall Mount
Package Content: .ExpertWiFi EBR63.RJ45 Ethernet Cable.Power Adapter.Quick Start Guide.Warranty Card
Product Weight (g): 436g
Product Dimentions: 225*127*146mm
AiMesh: AiMesh, • Primary AiMesh Router, • AiMesh Node
Device Access Control: "Allow you to block access to unwanted websites and apps."
------------------------------------------------------, Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Device Access Control Profile :12, • Maximum Device Access Control Content Filter Rule :12
Dashboard: Dashboard
Self-Defined Network: "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
------------------------------------------------------------------------Self-Defined Network Type
• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network• Maximum Self-Defined Network Rule :16Multiple Network
VLAN
Captive Portal for Free WiFi
VPN WiFi
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
Bandwidth Limiter
AP isolate
DNS Server Connection
Security: AiProtection, VPN, WPS, Let's Encrypt, DNS-over-TLS, SSH, Firewall, • Maximum Firewall Keyword Filter :64, • Maximum Firewall Network Service Filter :32, • Maximum Firewall URL Filter : 64
AiProtection: AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking
VPN: VPN Client L2PT, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark
Traffic Control: Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Website History
WAN: • PPPoE
• PPTP
• L2TP
• IPSecDual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort ForwardingPort TriggeringDMZDDNSNAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
LAN: DHCP Server, IGMP Snooping, IPTV, VLAN
Wireless: MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler
USB application: 4G / 5G Auto Mobile Tethering, Media Server, Samba Server, FTP Server, Shared Folder Privileges
User Interface: WEB: ASUSWRT, APP: ASUS ExpertWiFi APP
Administration: Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
