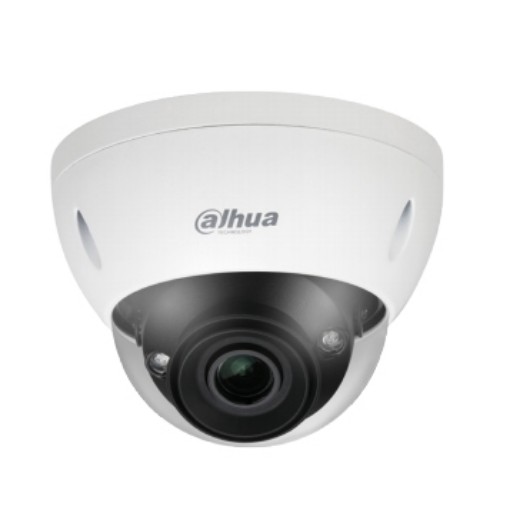

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Remote viewing: Yes
Certification: UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Protection features: Dust resistant, Vandal proof, Water resistant
International Protection (IP) code: IP67
IK code: IK10
Fog proof: Yes
Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.003 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 114°
Lens viewing angle, vertical: 62°
Tilt angle range: 0 - 65°
Pan range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS
Number of lenses: 1
Focal length range: 2.7 - 12 mm
Focus: Motorized
Maximum aperture number: 1.8
Detect distance (wide): 58 m
Detect distance (tele): 131 m
Observe distance (wide): 23 m
Observe distance (tele): 52 m
Recognize distance (wide): 12 m
Recognize distance (tele): 26 m
Identify distance (wide): 6 m
Identify distance (tele): 13 m
Closest focusing distance: 1.2 m
Night vision: Yes
Night vision distance: 40 m
LED type: IR
Number of illumination LEDs: 3
Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes: 720p, 1080p
Frame rate: 25 fps
Analog signal format system: PAL
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Flip & mirror: Yes
Privacy masking: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: H.264: 32 - 8192Kbps; H.265: 19 - 8192Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio codecs: G.711a, G.711Mu, G726, AAC, G.723
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast, Unicast
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 1000 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Video motion detection: Yes
Active tampering alarm: Yes
Intelligent Video Surveillance (IVS) system features: Abandoned object, Face detection, Intrusion, Missing object, People counting, Scene change, Tripwire
Web-based management: Yes
Web browser: Yes
Power source type: AC, DC, PoE
AC input voltage: 24 V
Power consumption (max): 12.4 W
DC output voltage: 12
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Height: 117.9 mm
Diameter: 15.9 cm
Weight: 950 g
Package weight: 1.2 kg
Number of cameras: 1 |
