Feature: Specification
Model Version: LT700E 1.0
CPU: 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage: Flash/ROM: 16 MB (128 Mbit) NOR, DDR/RAM: 128 MB (1 Gbit) DDR3
Cellular Standards: 4G LTE Cat. 6
Cellular Antennas: 2× Internal
SIM Options: 1× Nano SIM Slot
Available Versions: EU, US
Suitable Region: Europe, Middle East, Africa, Australia, Brazil
Max DL Speed: 300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced: DL 2CA, DL 2×2 MIMO
Cellular Bands: LTE-FDD: B1/3/5/7/8/20/28/32, LTE-TDD: B38/40/41, WCDMA: B1/5/8
Suitable Region: United States, Canada
Max DL Speed: 300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
Advanced: DL 2CA, DL 4×4 MIMO
Cellular Bands: LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71, LTE-TDD: B41/48
5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
Beamforming: True
FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Range Performance: Max: 170 m (558 ft), Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to Wall Performance specifications.
Wall Performance: Two wooden walls < 10 cm (4"), One concrete wall < 20 cm (7")
Physical Buttons: WPS Button, Reset Button
Gigabit RJ45 Ports: 4
Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, others are LAN ports
LED: System, Internet, Wi-Fi, LAN, WAN/LAN, Cellular Signal Strength
Power Input: DC Jack
Power Methods: DC
DC Input: 12V 1A
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
Max Power Consumption: 11.2W
Idle Power Consumption: 3.6W
Reliability: EMC: ESD Contact: 4kV; Air: 8kV
Environment: Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Certifications: FCC, CE
*Mechanical: Dimension: 190×50×148.8 mm (7.48×1.97×5.86 inches), Product Weight: 300 g (10.58 oz.)
Installation: Desktop

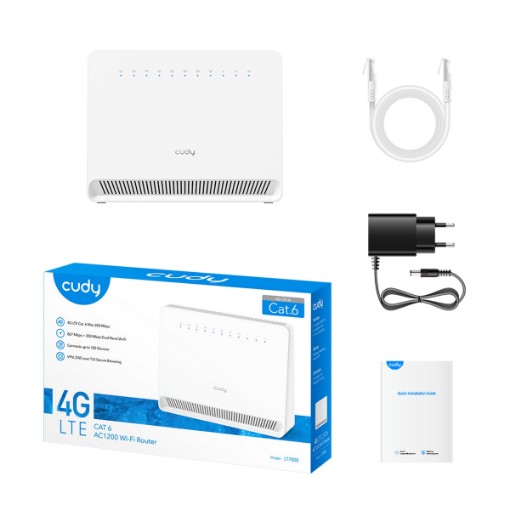

Package Content: LT700E, Power Adapter, Ethernet Cable, Installation Guide
Ordering Information: Retail Package Weight: EU / US: 595 g (20.99 oz.), Retail Package Dimension: 270×58×168 mm (10.63×2.28×6.61 inches), Units per Carton: 20, Carton Net Weight: EU / US: 11.9 kg (26.23 lbs), Carton Gross Weight: EU / US: 12.8 kg (28.22 lbs), Carton Dimension
Артикул: LT700E_EU |
