Feature: Specification
Model Version: POE350 2.0
Protocols: 802.3i 10 Mbps over Twisted Pair, 802.3u 100 Mbps over Twisted Pair, 802.3ab 1 Gbps over Twisted Pair, 802.3af PoE, 802.3at PoE, 802.3bt PoE
Uplink Stream: 1× GbE
Downlink Stream: 1× GbE, 802.3at/af/bt
Downlink Pin Assignment: Four-Pair
Transmission Distance: Cat. 5e or higher cable: 100 meters at Gigabit, Note: Total cable length from uplink switch through PoE adapter to downlink device is measured as one segment
LED: Power, PoE Wattage
Power Input: AC Inlet
Power: AC: 100-240V, 50/60Hz, 2.2A, Max Power Output: 90W, 54V⎓1.67A
Reliability: Power Protection: Surge Protection, ESD Protection, Overvoltage Protection, Short-Circuit Protection
EMC: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods: Grounding Point, Three-Prong Plug
Environment: Ambient Operating Temperature: -1040 ℃ (14104 ℉), Storage Temperature: -4070 ℃ (-40158 ℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 10%~95% non-condensing
Certifications: FCC, CE
Mechanical: Installation: Desktop, Wall-mount
Dimension: Main Part: 178×80×46 mm (7.01×3.15×1.81 inches), Each Bracket: 10 mm (0.39 inches)
Casing Material: Metal

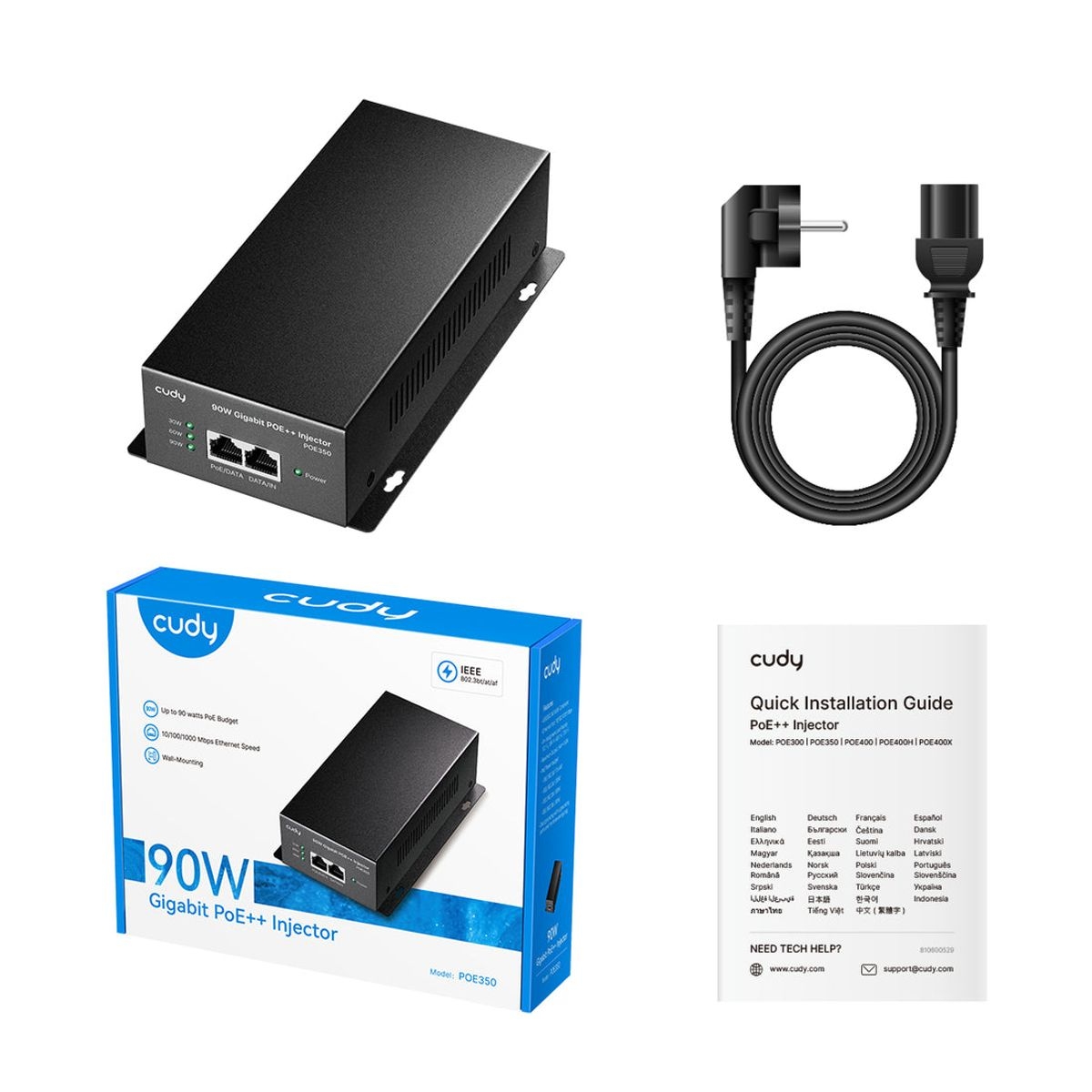

Package Content: POE350, Power Cord, Mounting Kit, Installation Guide
Ordering Information: Retail Package Dimension: 193×145×55 mm (7.6×5.71×2.17 inches), Units per Carton: 20, Carton Dimension: 40.8×31.5×29.5 cm (16.06×12.4×11.61 inches)
