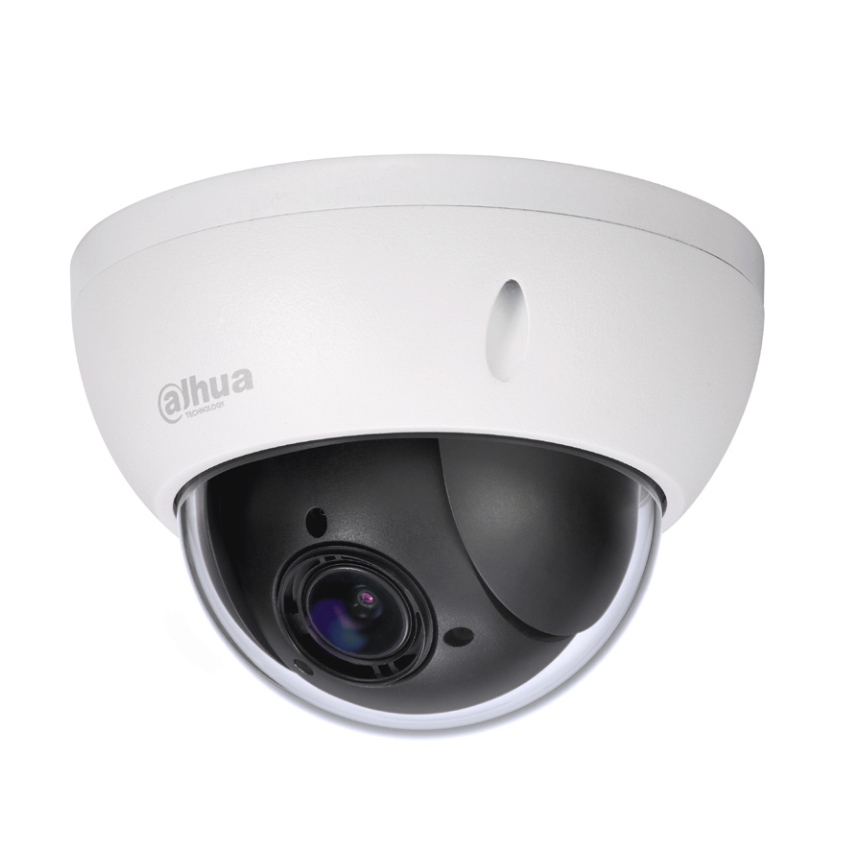

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: 8 Tour, Preset sequence
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: CE, FCC, UL
Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Metal
International Protection (IP) code: IP66
IK code: IK10
Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 112.5°
Tilt angle range: 0 - 90°
Tilt speed: 60 °/sec
Pan range: 0 - 355°
Pan speed: 100 °/sec
Pan preset speed: 100 °/sec
White balance: ATW, Auto, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/1 - 1/30000 s
Adjustment shutter speed: Auto/Manual
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Number of effective pixels (H x V): 1920 x 1080 pixels
Zoom capability: Yes
Optical zoom: 4x
Digital zoom: 16x
Detect distance: 124.1 m
Observe distance: 49.7 m
Recognize distance: 24.8 m
Focal length range: 2.7 - 11 mm
Focus: Motorized/Manual
Maximum aperture number: 1.6
Identify distance: 12.4 m
Closest focusing distance: 0.1 m
Night vision: Yes
LED type: IR
Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes: 720p, 1080p
Frame rate: 30 fps
NTSC resolutions: 1920 x 1080 pixels
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 448K - 8192Kbps, 5120K - 10240Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast, Unicast
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB
Internal memory: 256 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Video motion detection: Yes
Web-based management: Yes
Web browser: Yes
Power source type: DC
Power consumption (max): 5.5 W
DC output voltage: 12
DC output current: 1.5 A
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Mobile operating systems supported: Android, iOS
Height: 89 mm
Diameter: 12.2 cm
Weight: 520 g
Package weight: 730 g
Package type: Box
Number of cameras: 1 |
